ECS CICD Automation - 7. Jenkins Job (ECS Fargate Rolling)

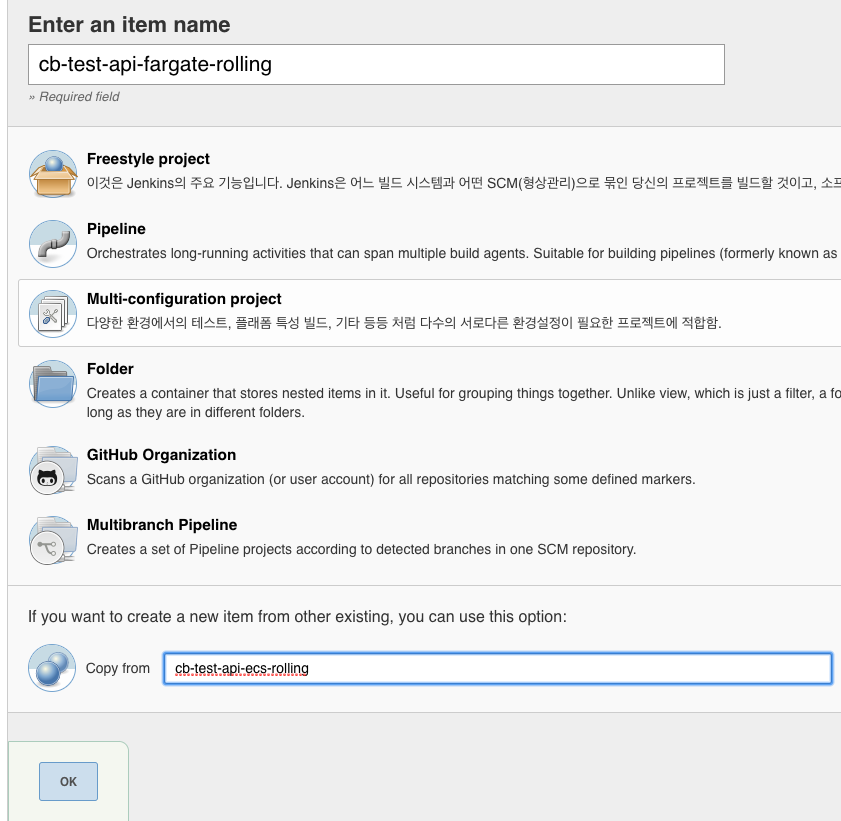

이전 ECS 배포 잡을 카피해서 만들어 줍시다.





변수는 아래와 같이 수정해줍니다.





그리고 스크립트를 아래와 같이 넣어주세요



pipeline {
    agent any
    stages {
        stage('Git Clone') {
            steps {
                script {
                    try {
                        git url: "https://git-codecommit.ap-northeast-2.amazonaws.com/v1/repos/cb-test-api", branch: "master", credentialsId: "$GIT_CREDENTIALS_ID"
                        sh "sudo rm -rf ./.git"
                        env.cloneResult=true
                    } catch (error) {
                        print(error)
                        env.cloneResult=false
                        currentBuild.result = 'FAILURE'
                    }
                }
            }
        }
        stage('Build JAR') {
            when {
                expression {
                    return env.cloneResult ==~ /(?i)(Y|YES|T|TRUE|ON|RUN)/
                }
            }
            steps {
                script{
                    try {
                        sh """
                        rm -rf deploy
                        mkdir deploy
                        """
                        sh "sudo sed -i \"s/module_name=.*/module_name=${env.JOB_NAME}\\:${env.BUILD_NUMBER}/g\" /var/lib/jenkins/workspace/${env.JOB_NAME}/src/main/resources/application.properties"
                        sh "cat /var/lib/jenkins/workspace/${env.JOB_NAME}/src/main/resources/application.properties"
                        sh 'mvn -Dmaven.test.failure.ignore=true clean install'
                        sh """
                        cd deploy
                        cp /var/lib/jenkins/workspace/${env.JOB_NAME}/target/*.jar ./${env.JOB_NAME}.jar
                        """
                        env.mavenBuildResult=true
                    } catch (error) {
                        print(error)
                        echo 'Remove Deploy Files'
                        sh "sudo rm -rf /var/lib/jenkins/workspace/${env.JOB_NAME}/*"
                        env.mavenBuildResult=false
                        currentBuild.result = 'FAILURE'
                    }
                }
            }
            post {
                success {
                    slackSend channel: '#pipeline-deploy', color: 'good', message: "The pipeline ${currentBuild.fullDisplayName} stage Build JAR successfully."
                }
                failure {
                    slackSend channel: '#pipeline-deploy', color: 'danger', message: "The pipeline ${currentBuild.fullDisplayName} stage Build JAR failed."
                }
            }
        }
        stage('Docker Build'){
            when {
                expression {
                    return env.mavenBuildResult ==~ /(?i)(Y|YES|T|TRUE|ON|RUN)/
                }
            }
            steps {
                script{
                    try {
                        sh"""
                        #!/bin/bash
                        cd ./deploy
                        cat>Dockerfile<<-EOF
FROM ${ECR_BASE_URL}:latest
ADD ${env.JOB_NAME}.jar /home/${env.JOB_NAME}.jar
CMD nohup java -jar /home/${env.JOB_NAME}.jar 1> /dev/null 2>&1
EXPOSE 9000
EOF"""
                        sh"""
                        cd ./deploy
                        \$(aws ecr get-login --no-include-email --region ap-northeast-2)
                        docker build -t ${SERVICE_NAME.toLowerCase()} .
                        docker tag ${SERVICE_NAME.toLowerCase()}:latest ${ECR_TASK_URL}:ver${env.BUILD_NUMBER}
                        docker push ${ECR_TASK_URL}:ver${env.BUILD_NUMBER}
                        """
                        echo 'Remove Deploy Files'
                        sh "sudo rm -rf /var/lib/jenkins/workspace/${env.JOB_NAME}/*"
                        env.dockerBuildResult=true
                    } catch (error) {
                        print(error)
                        echo 'Remove Deploy Files'
                        sh "sudo rm -rf /var/lib/jenkins/workspace/${env.JOB_NAME}/*"
                        env.dockerBuildResult=false
                        currentBuild.result = 'FAILURE'
                    }
                }
            }
            post {
                success {
                    slackSend channel: '#jenkins', color: 'good', message: "The pipeline ${currentBuild.fullDisplayName} stage Docker Build successfully."
                }
                failure {
                    slackSend channel: '#jenkins', color: 'danger', message: "The pipeline ${currentBuild.fullDisplayName} stage Docker Build failed."
                }
            }
        }
        stage('Deploy'){
            when {
                expression {
                    return env.dockerBuildResult ==~ /(?i)(Y|YES|T|TRUE|ON|RUN)/
                }
            }
            steps {
                script{
                    try {
                        withAWS(credentials:"$AWS_CREDENTIALS") {
                            sh "aws ecs describe-task-definition --task-definition ${TASK_DEFINITION} --region ap-northeast-2 --query \"taskDefinition.{\"family\": family, \"networkMode\": networkMode,\"containerDefinitions\": containerDefinitions, \"executionRoleArn\": executionRoleArn,\"requiresCompatibilities\": requiresCompatibilities,\"cpu\":cpu, \"memory\":memory}\" --output json > task-definition.json"
                            def task_repository_name = sh(
                                    script:"""
                                    echo \"${ECR_TASK_URL}\" | awk \'{ split(\$0, arr, \"/\"); print arr[2] }\'
                                    """,
                                    returnStdout: true
                                ).trim()
                            sh "sudo sed -i \"9s/${task_repository_name}.*/${task_repository_name}:ver${env.BUILD_NUMBER}\\\",/g\" task-definition.json"
                            sh "aws ecs register-task-definition --cli-input-json file://task-definition.json --region ap-northeast-2"
                            sh "aws ecs update-service --cluster ${CLUSTER_NAME} --service ${SERVICE_NAME} --task-definition ${TASK_DEFINITION} --region ap-northeast-2"
                        }
                    } catch (error) {
                        print(error)
                        echo 'Remove Deploy Files'
                        sh "sudo rm -rf /var/lib/jenkins/workspace/${env.JOB_NAME}/*"
                        currentBuild.result = 'FAILURE'
                    }
                }
            }
            post {
                success {
                    slackSend channel: '#jenkins', color: 'good', message: "The pipeline ${currentBuild.fullDisplayName} successfully."
                }
                failure {
                    slackSend channel: '#jenkins', color: 'danger', message: "The pipeline ${currentBuild.fullDisplayName} failed."
                }
            }
        }
    }
}



배포는 뭐 크게 문제가 없습니다

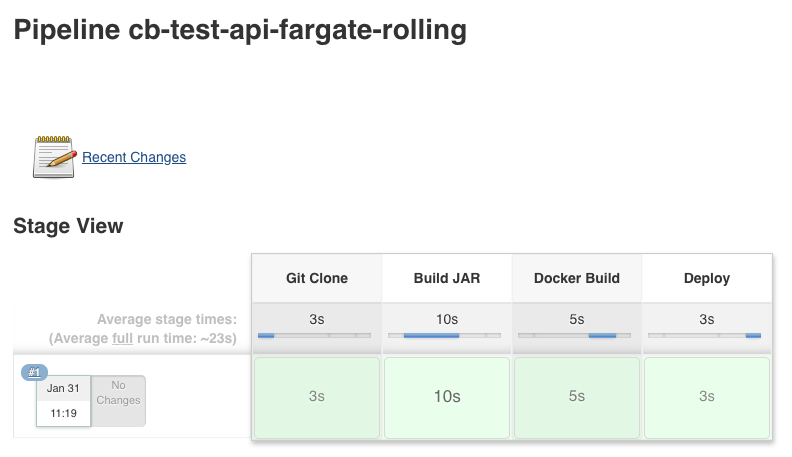

잘 수행된 것을 볼 수 있습니다.

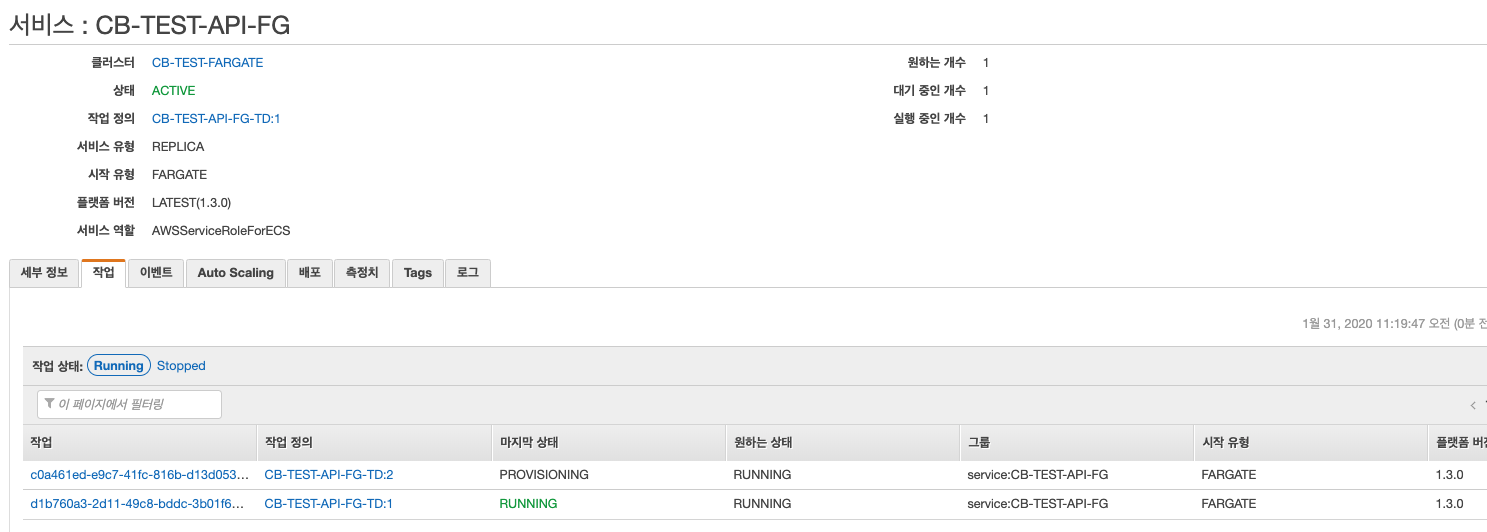

배포가 수행되고, CLI를 통해 서비스가 새롭게 뜬 것을 볼 수 있습니다.

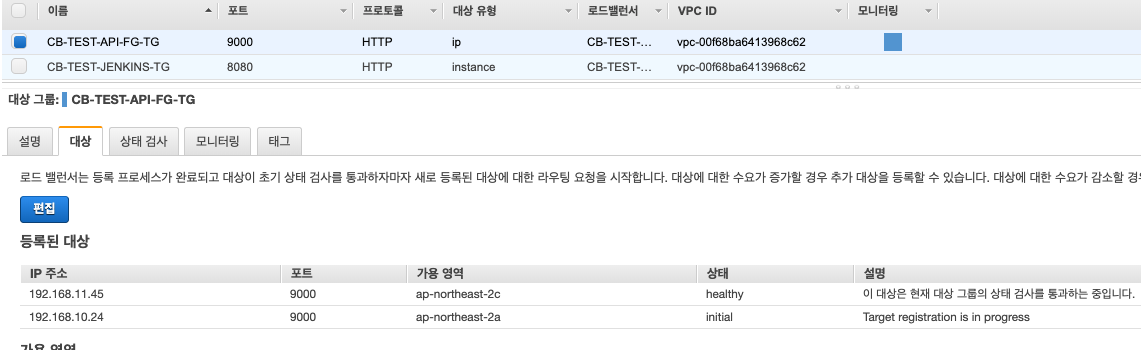

새롭게 타겟그룹에도 파게이트 컨테이너가 띄워지고,

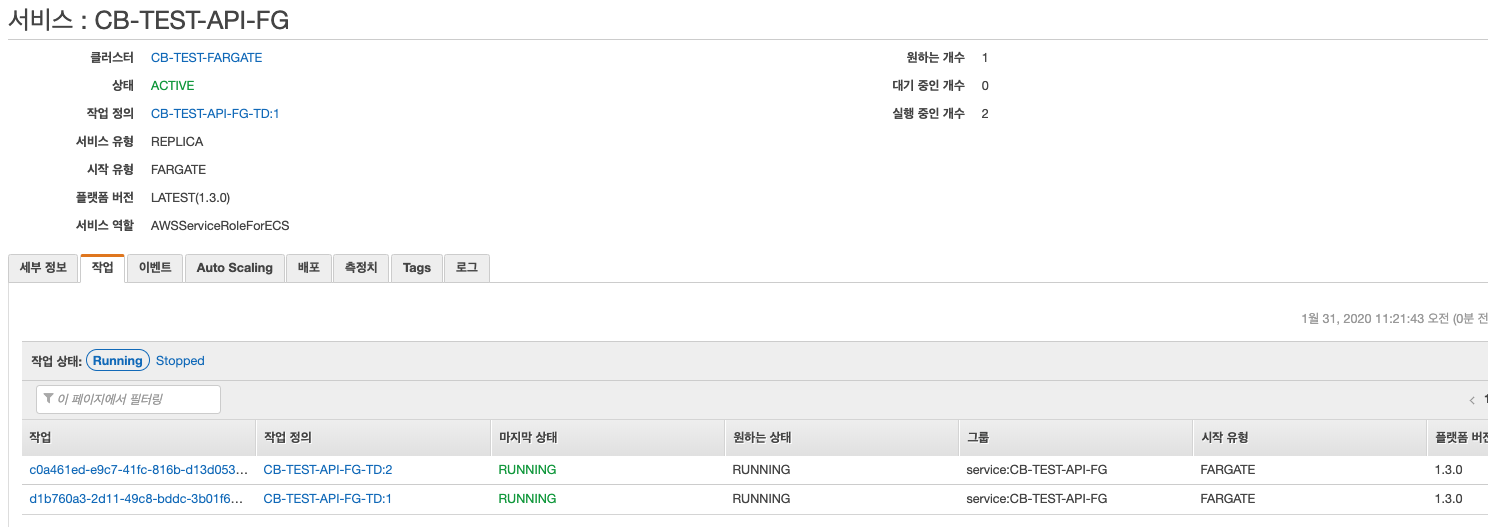

러닝까지 잘 수행된 다음 헬스체크도 잘 되는것을 볼 수 있습니다.

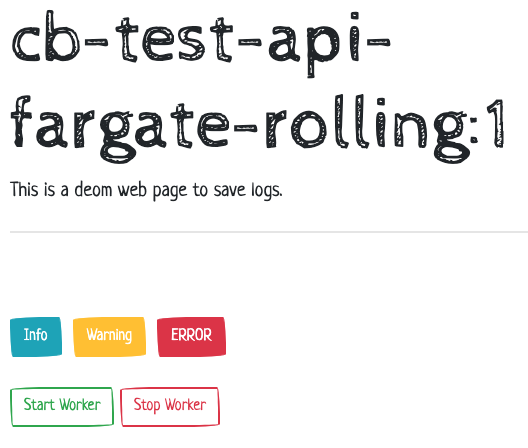

URL로 접속 시에도 문제가 없는 것을 볼 수 있습니다.





다음 포스트에서는 Blue Green 배포에 대해 알아보도록 하겠습니다.
